120-12

Data logger with GSM modem — 120-12

Спецификация 120-12

Available on request
Delivery across Russia
Order phone: +7(800)777-18-50

Request price Request a callback

Description

Long autonomous operation: measurement, accumulation, processing, and transmission of data to the SERVER (remotely - via built-in GSM modem (GPRS channel / SMS channel); locally - via Bluetooth channel). Remote access to the external device (with the possibility of powering the external device interface) when powered by battery.

Designed for collecting, monitoring, and storing data:

from pulse flow meters,
analog pressure, temperature, and level sensors,
discrete alarm sensors.

Scheduled remote access to an external device connected to the RS-485 serial interface via a transparent channel established by the built-in GSM modem

Part of the PROMODEM LOGGER information system, designed to solve the following tasks:

"Accounting and Control" of measured values. Providing a detailed report on measured values for subsequent detailed analysis. (Examples of user tasks: water level monitoring, water flow monitoring, etc.)
"Detection of abnormal situations." Providing a consolidated daily report on measured values for monitoring and analyzing daily deviations. (Examples of user tasks: detecting pipeline tapping, leak detection, etc.)

resource.id|url:['scheme'=>'full']}">

Specifications

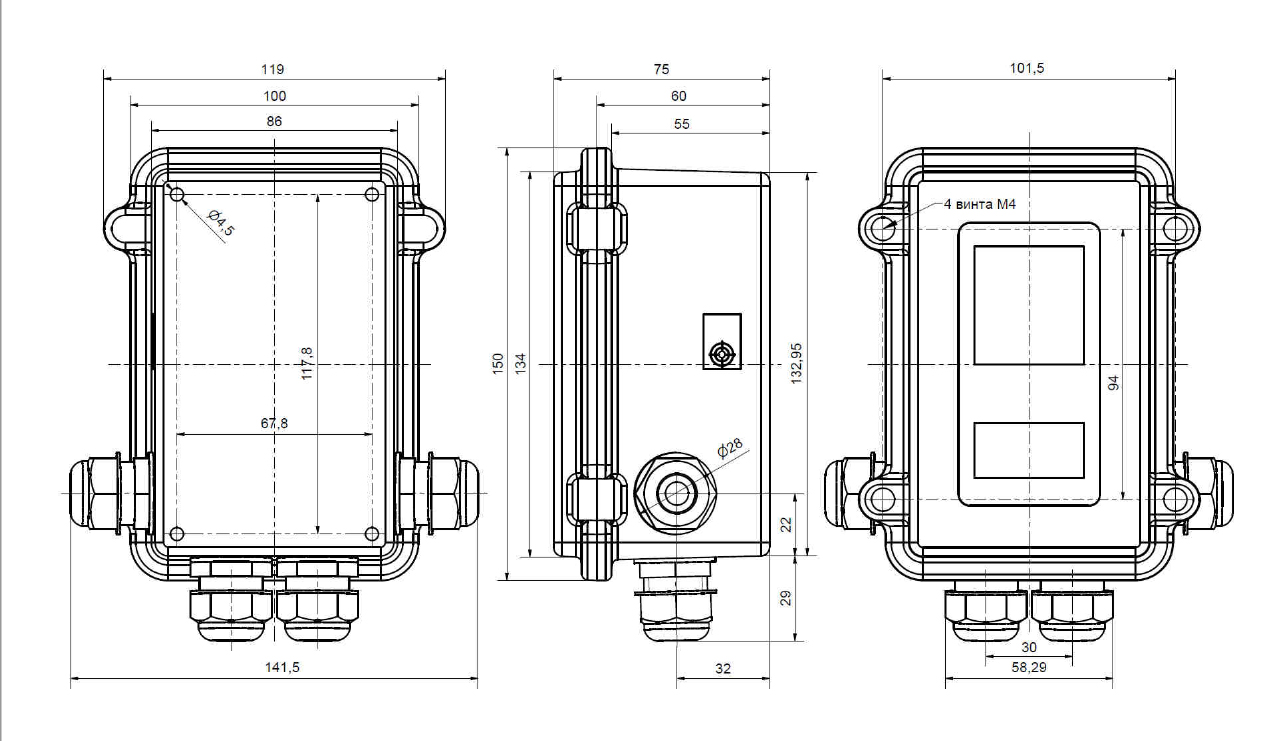

Overall dimensions drawing
Applications

Functional Characteristics
Number of analog inputs 4…20mA	2
Min/max control for analog inputs	Yes
Output source for powering analog sensors	15V x 60mA
Number of counting inputs	2
Min/max control for counting inputs	Yes
Number of discrete inputs	2
Built-in temperature sensor	Yes
Battery residual capacity control	Yes
Case opening control	Yes
Communication channels	Packet data transmission, SMS messages, Local
Number of SIM cards	up to 2 (micro SIM)
Serial interface	RS-485 (with the possibility to power the external device interface)
Connection initiator	Logger

Electrical Parameters
Battery	3.6V x 14Ah
Number of batteries	2

Design Features
Case	Metal
Protection class	IP68
Case dimensions	170.5x141.5x75 mm
Weight	1000 grams
Cable glands	4
LED indication	Inside the case
Wall mounting	Yes
Connector types	Push contacts
Antenna	External
