IZMERKON EM 470 for pulp

Special modification for measuring pulp flow — IZMERKON EM 470 for pulp

Name: Special modification for measuring pulp flow IZMERKON EM 470 for pulp
Brand: ИЗМЕРКОН
Availability: BackOrder

Спецификация ИЗМЕРКОН EМ 470 Опросный лист ИЗМЕРКОН EM 470

Available on request
Delivery across Russia
Order phone: +7(800)777-18-50

Request price Request a callback

Description

The IZMERKON EM 470 electromagnetic flowmeter is specially designed for measuring the flow of pulp and viscous liquids.

Often, noise caused by solid particles in process liquids affects measurement results.

The IZMERKON EM 470 flowmeter uses high-frequency excitation at 25/30 Hz with a rectangular current pulse to measure pulp flow, eliminating the problem of measurement instability caused by noise related to suspended particles in the medium.

Electromagnetic flowmeters have no moving parts subject to wear, significantly reducing the need for maintenance or replacement.

We offer flowmeters with linings and electrodes made from various materials, capable of working with a wide range of electrically conductive process media.

The EM 470 flowmeters can also be used to measure the flow of drilling or cement slurries, paper pulp, juice, syrups, ore or coal slurry, and other liquids.

Features

Special design of the converter eliminates measurement instability caused by noise related to suspended particles in the medium
Excitation method with rectangular current pulse (4 waveform types) to improve measurement stability
High-frequency excitation at 25/30 Hz: high interference resistance and accurate measurement of viscous media
No moving parts, requiring no maintenance
LCD display with backlight for viewing current flow data, accumulated flow, flow velocity, etc.

resource.id|url:['scheme'=>'full']}">

Specifications

Specifications
Measuring diameter	DN3...DN3000mm (1/8"...120")
Limit of basic relative error	±0.5% of measured value at velocity ≥ 0.5 m/s, ±0.2% (optional) of measured value at velocity ≥ 0.5 m/s
Measured medium velocity	0.1~15 m/s
Measurement result reproducibility	≤0.17%
Excitation current	125 mA, 187 mA, 250 mA
Excitation frequency	25/30 Hz
Design type	Compact / Remote version (standard cable length 10 m, maximum 100 m)
Conductivity of measured medium	>5 µS/cm
Dust and water protection rating	Transmitter: IP65 standard, IP67 optional Sensor: Standard IP65, IP68 (submersible, available only for remote version)
Electrode material	SS316L, Hastelloy, Titanium, Tantalum, Platinum-iridium, Tungsten carbide
Power supply	85～250 V AC (50/60 Hz), 20～36 V DC
Power consumption	<20W
Output analog signal	Analog: 4...20 mA (load 0...750 Ohm) Frequency signal: Forward and reverse flow output with frequency range 1...5000 Hz Alarm signal: Two isolated open collectors used for alarm signal output.
Output digital signal	RS485 MODBUS RTU by default, HART, GPRS, PROFIBUS (optional)
Display	LCD display, 128X128 mm, three lines, 4 buttons (optical)
Ambient temperature	-20°C~60°C
Measured medium temperature	Compact: -20°C~80°C Remote version: -20°C~120°C
Lining material	PTFE (-20°C...150°C, DN15-DN1600) FEP (-20°C...120°C, DN3-DN1800) PFA (-20°C...160°C, DN3-DN800) Polyurethane (-10°C...60°C, DN40-DN1600) Neoprene (-10°C...80°C, DN40-DN3000) Hard rubber (-10°C...80°C, DN40-DN3000) Ceramics (-20°C...180°C, DN15-DN200)
Flange connection standard	DIN EN-1092-1, ANSI, JIS
Sensor housing material	Measuring system: SS304 Flange and housing: carbon steel (standard), SS304 / SS316 optional
Transmitter housing material	Aluminum alloy with epoxy coating
Nominal pressure of flange connection	PN10 / PN16 / PN25 / PN40 DIN EN-1092-1 10K / 20K / 30 K JIS 150# / 300# / 600# ANSI High pressure up to 42 MPa / ANSI 2500# can be made to order
Display information	Current flow, accumulated flow, flow velocity
Diagnostic functions	High and low level alarm, alarm signal, no flow in the pipeline, self-diagnosis
Types of totalizing counters	Three built-in totalizing devices: forward flow, reverse flow, and net flow
Units of measurement	L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h
Menu language	English, Italian, Portuguese, French, Spanish

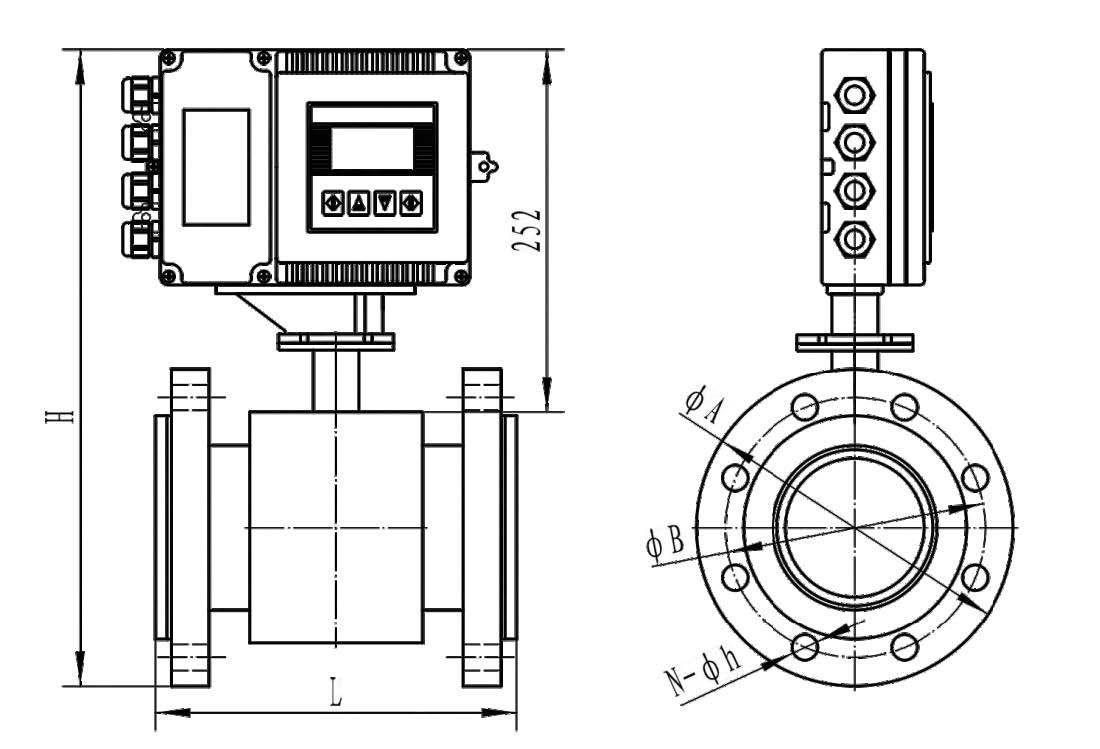

Overall dimensions drawing

The specified overall dimensions are for reference only and may vary depending on the version. Exact dimensions must be confirmed when ordering.
Applications

Specifications
Overall dimensions drawing
Applications

Specifications
Measuring diameter	DN3...DN3000mm (1/8"...120")
Limit of basic relative error	±0.5% of measured value at velocity ≥ 0.5 m/s, ±0.2% (optional) of measured value at velocity ≥ 0.5 m/s
Measured medium velocity	0.1~15 m/s
Measurement result reproducibility	≤0.17%
Excitation current	125 mA, 187 mA, 250 mA
Excitation frequency	25/30 Hz
Design type	Compact / Remote version (standard cable length 10 m, maximum 100 m)
Conductivity of measured medium	>5 µS/cm
Dust and water protection rating	Transmitter: IP65 standard, IP67 optional Sensor: Standard IP65, IP68 (submersible, available only for remote version)
Electrode material	SS316L, Hastelloy, Titanium, Tantalum, Platinum-iridium, Tungsten carbide
Power supply	85～250 V AC (50/60 Hz), 20～36 V DC
Power consumption	<20W
Output analog signal	Analog: 4...20 mA (load 0...750 Ohm) Frequency signal: Forward and reverse flow output with frequency range 1...5000 Hz Alarm signal: Two isolated open collectors used for alarm signal output.
Output digital signal	RS485 MODBUS RTU by default, HART, GPRS, PROFIBUS (optional)
Display	LCD display, 128X128 mm, three lines, 4 buttons (optical)
Ambient temperature	-20°C~60°C
Measured medium temperature	Compact: -20°C~80°C Remote version: -20°C~120°C
Lining material	PTFE (-20°C...150°C, DN15-DN1600) FEP (-20°C...120°C, DN3-DN1800) PFA (-20°C...160°C, DN3-DN800) Polyurethane (-10°C...60°C, DN40-DN1600) Neoprene (-10°C...80°C, DN40-DN3000) Hard rubber (-10°C...80°C, DN40-DN3000) Ceramics (-20°C...180°C, DN15-DN200)
Flange connection standard	DIN EN-1092-1, ANSI, JIS
Sensor housing material	Measuring system: SS304 Flange and housing: carbon steel (standard), SS304 / SS316 optional
Transmitter housing material	Aluminum alloy with epoxy coating
Nominal pressure of flange connection	PN10 / PN16 / PN25 / PN40 DIN EN-1092-1 10K / 20K / 30 K JIS 150# / 300# / 600# ANSI High pressure up to 42 MPa / ANSI 2500# can be made to order
Display information	Current flow, accumulated flow, flow velocity
Diagnostic functions	High and low level alarm, alarm signal, no flow in the pipeline, self-diagnosis
Types of totalizing counters	Three built-in totalizing devices: forward flow, reverse flow, and net flow
Units of measurement	L/s, L/m, L/h, m3/s, m3/m, m3/h, UKG, USG, gal/s, gal/m, gal/h, kg/s, kg/m, kg/h, t/s, t/m, t/h
Menu language	English, Italian, Portuguese, French, Spanish

The specified overall dimensions are for reference only and may vary depending on the version. Exact dimensions must be confirmed when ordering.

Нефть и газ

You may find useful

IZMERKON EM 470

Flanged Electromagnetic Flowmeter

IZMERKON EM 470 Electromagnetic Flowmeter for Pulp and Viscous Liquids

Measuring flow under conditions of high solid particle concentration is a challenge that not every device can handle. A standard electromagnetic flowmeter often produces unstable readings when working with pulp, slurry, or construction mixtures due to noise caused by solid particles colliding with the electrodes. The special modification IZMERKON EM 470 is designed specifically for such challenging media. This device ensures high accuracy where standard solutions fail.

Thanks to the use of a high-frequency excitation magnetic field, the flowmeter for pulp and viscous liquids effectively filters out interference, providing a stable output signal. This is critically important for mining and processing plants, cement factories, and chemical industry enterprises, where even the slightest error in raw material accounting leads to significant financial losses.

If you need to request additional technical documentation for the product or require consultation, contact our specialists. Experts at IZMERKON will help select lining and electrode materials that withstand abrasive wear and aggressive chemicals in the measured medium.

Features of the Pulp Model

The main difference of this modification from general industrial versions is increased wear resistance and noise immunity. Viscous media and abrasive suspensions require a special approach to the design of the measuring channel.

Key advantages of IZMERKON EM 470:

Abrasion resistance: Use of reinforced lining made of polyurethane, hard rubber, or special ceramics prevents premature wear of the device's internal surface.
Suppression of pulp "noise": Special signal processing algorithms allow obtaining reliable data even at high solid phase concentrations in the flow.
No clogging: Full-bore design has no protruding parts or narrowings, eliminating the risk of obstruction formation.
Electrode material options: Electrodes made of tungsten carbide, tantalum, or platinum are available for working with aggressive solutions.
Minimal maintenance requirements: Due to the absence of moving parts in the design, the flowmeter requires infrequent servicing.

Along with this device, you may also be interested in:

IZMERKON EM 370 — flowmeter for partially filled pipes (non-pressure collectors).
IZMERKON EM 450 — submersible flowmeter for large diameter pipes.
Ultrasonic Flowmeters — clamp-on systems for monitoring without pipeline integrity interference.

Principle of Operation and Pulp Measurement

The device operates based on Faraday's law of electromagnetic induction. When a conductive liquid crosses a magnetic field, a voltage proportional to the velocity of the medium arises on the electrodes.

Pulp Measurement

Measuring pulp flow is the process of determining the volume or mass of pulp (a mixture of water and solid particles) in technological processes such as paper production, pulp manufacturing, ore processing, wastewater treatment, and other industrial sectors. Pulp flow measurement can include both volumetric and mass characteristics of this liquid.

Devices for measuring pulp flow may include various types of sensors and flowmeters capable of operating in aggressive and challenging conditions typical for pulp processing. For example, the following are often used for pulp flow measurement:

Electromagnetic flowmeters — optimal for conductive liquids with solid inclusions.
Ultrasonic flowmeters — allow measurements without contact with the medium.
Vortex flowmeters — used in specific technological units.

Pulp Measurement

Devices for measuring pulp flow may include various types of sensors and flowmeters capable of operating in aggressive and challenging conditions typical for pulp processing. For example, ultrasonic flowmeters, vortex flowmeters, electromagnetic flowmeters, and others are often used for pulp flow measurement.

Devices for measuring pulp flow are used in various industrial sectors:

Paper and pulp production - for controlling pulp flow during paper forming and other technological operations.
Mining industry - for measuring pulp flow during ore beneficiation and other processes.
Wastewater treatment - for controlling pulp flow in wastewater purification processes before discharge.
Chemical industry - for monitoring and optimizing chemical processing and product manufacturing.

Applications in Various Industries

Electromagnetic flow meters for pipelines with pulp are in demand where the medium has high density and abrasiveness:

Mining and Metallurgy: Accounting for copper-nickel, iron, and gold concentrates.
Construction: Measuring flow of concrete mixtures, cement milk, and drilling fluids.
Chemical Industry: Pumping suspensions and mineral fertilizers.
Pulp and Paper Production: Controlling the flow of paper pulp and alkalis.
Treatment Facilities: Accounting for activated sludge, sediment, and heavily polluted wastewater.

Flow Meter Properties and Technical Specifications

Characteristic	Value
Measurement Accuracy	±0.5% (optional ±0.2%)
Diameter Range	from DN3 to DN3000
Medium Temperature	Compact: up to +80°C; Remote: up to +120°C
Protection Degree	Transmitter: IP65/IP67; Sensor: IP65/IP68
Output Signals	4-20 mA, pulse, RS485 Modbus (standard), HART/Profibus (optional)
Self-Diagnostics	Empty pipeline control, electrode contamination

Where to Buy the Device and What Determines Its Price?

Prices for electromagnetic flow meters are determined based on pipe diameter, lining material, and electrodes. Using tantalum or platinum alloys increases the cost but is the only way to ensure long service life in aggressive environments.

The company «IZMERKON» provides a full cycle: from consultation to installation and metrological verification. To receive a detailed commercial offer, send a request to our engineers. We will select a configuration tailored to your tasks.
