Description
The P3110E converter with 4-20 mA outputs is designed for measuring temperature and relative humidity.

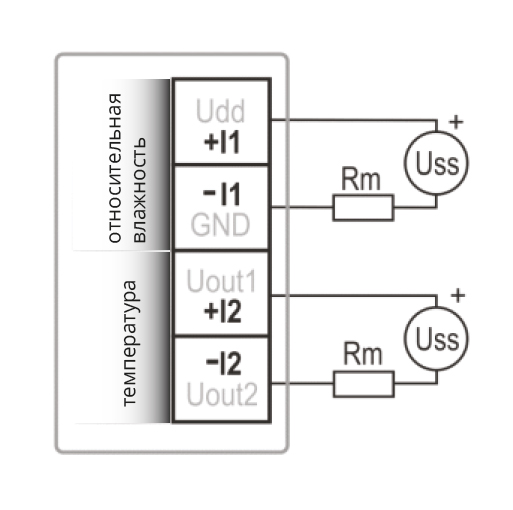

The transmitter interacts via two galvanically isolated 4-20 mA current loops. Each loop has a two-wire connection, and each loop requires power from the evaluation device. It is always necessary to connect loop I1, which supplies power to the measuring part of the device.
WARNING, the device is currently discontinued.
- Specifications
- Overall dimensions drawing
- Electrical diagram
- Applications
Temperature Sensor |
|
| Measurement Range | from -30 to +80°C |
| Accuracy | ± 0.6°C |
| Resolution | 0.1°C |
Humidity Sensor |
|
| Measurement Range | from 0 to 100% relative humidity |
| Accuracy | ± 3.0% relative humidity in the range from 5 to 95% and relative humidity at 23°C |
| Resolution | from 0 to 100% relative humidity |
Dew Point |
|
| Measurement Range | from -60 to +80°C |
| Accuracy | ± 1.5°C at ambient temperature T <25°C and relative humidity > 30% |
| Resolution | 0.1°C |
General Technical Data |
|
| Operating Temperature | from -30 to +80°C |
| Channels | internal temperature and humidity sensor |
| Output | 4-20 mA, galvanically isolated |
| Humidity Range, Temperature Compensation | entire temperature range |
| Power | 9-30 Vdc |
| Electronics Protection Rating | IP65; Sensors IP40 |
| Dimensions | 88.5 x 170 x 39.5 mm; probe length 75 mm |
| Weight | 150 g |
| Warranty | 3 years |
