Mobile Multifunctional Power Meter — PM 600
Спецификация PM 600
Available on request
Delivery across Russia
Order phone: +7(800)777-18-50
Description
PM 600 is a mobile multifunctional power meter for large electrical machines, such as air compressors.
The power meter can be connected while the electrical installation is operating, without disconnecting from the power supply.
Magnetic voltage probe tips are connected to circuit breakers, and split-core current transformers are installed on phase conductors.
The maximum measurable current depends on the current transformers used and can be 100 or 600 A.
All measured values are transmitted via the RS485 (Modbus) digital protocol to data loggers DS 400 mobile / DS 500 mobile, where they can be viewed, recorded, and analyzed.
Measures voltage and current and calculates:
- Active power [kW]
- Apparent power [kVA]
- Reactive power [kVAR]
- Consumed energy [kWh]
- Power factor [cos phi]
- Specifications
- Connection diagram
- Applications
| Technical Specifications | |||||
| Overall Dimensions | 270 x 225 x 156 mm (L x W x H) | ||||
| Weight | 2.1 kg | ||||
| Housing Material | Impact-resistant HDPE/HWU – plastic (ABS) | ||||
| External Connectors | Measuring probes (L1, L2, L3, N), 4 pcs. Current transformers (L1, L2, L3), 3 pcs. RS485 module power supply (Modbus), 1 pc. RS485 digital output (Modbus), 1 pc. | ||||
| Installation Dimensions of Current Transformers |
100A -> maximum conductor diameter 24 mm 600A -> maximum conductor diameter 36 mm |
||||
| Interface | RS 485 Modbus RTU | ||||
| Power Supply | 100 – 240 V AC/50 – 60 Hz | ||||
| Operating Temperature | 0°C – 40°C | ||||
| Storage Temperature | -20°C – 70°C | ||||
| Measurement Type | Voltage (V), Current (A), Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Consumed Energy (kWh), Frequency (Hz), Power Factor (cos φ) | ||||
| Measurement Range | Voltage | up to 415 V | |||
| Current | up to 100A or up to 600A depending on the current transformers used | ||||
| Current Measurement | Accuracy: | IEC 60044-1 Class 1 | |||
| Current deviation in % of nominal value | |||||
| 120% | 100% | 20% | 5% | ||
| 1 | 1 | 1.5 | 3 | ||
| Active Energy | Accuracy: | IEC 62053-21 Class 1 | |||
PM 600 Connection Diagram

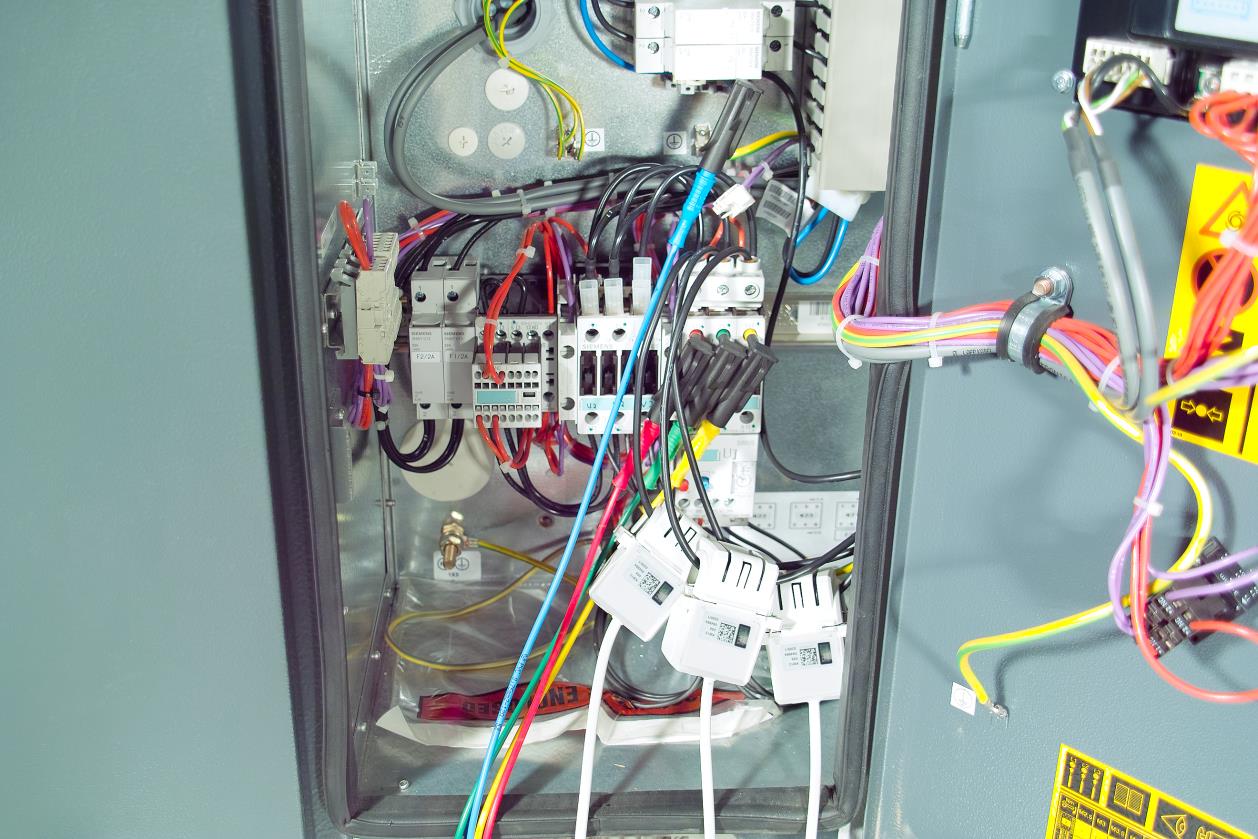

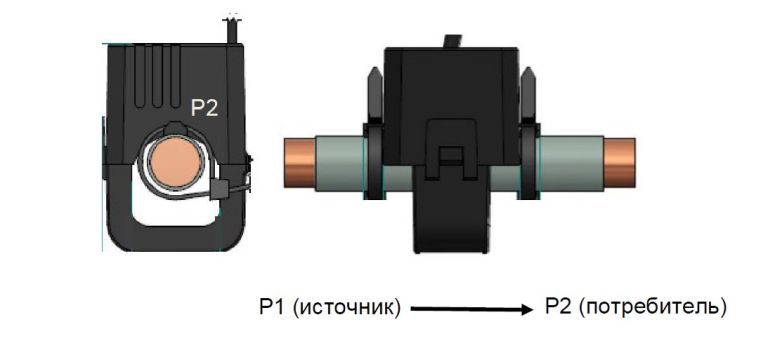

Installation of Current Transformers:

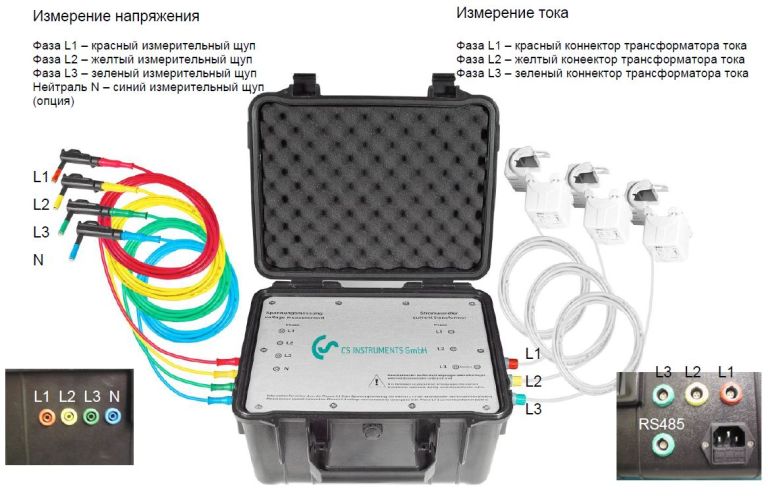

Example of Device Connection:
