Temperature, humidity, and CO2 concentration converters with RS232 and RS485 outputs. — Sensors T6340 and T6440
Спецификация T6340 и T6440
Available on request
Delivery across Russia
Order phone: +7(800)777-18-50
Description
Temperature, humidity, and CO2 concentration converters with RS232 and RS485 outputs. Housed in a reliable, wear-resistant case. There is an option to program the output signal. The large two-line LCD display is designed to simultaneously show two parameters. The display can be turned off if necessary. The measurement principle is based on the NDIR (nondispersive infrared sensor) method. It automatically compensates for sensor aging. Auto-calibration of the CO2 sensor results in excellent measurement accuracy across the entire operating temperature range. This sensor can meet the highest requirements for outdoor use. It is resistant to contamination and provides maintenance-free operation and excellent long-term stability.
Recently, levels of carbon dioxide, temperature, and humidity have been considered as the most important parameters responsible for indoor climate quality. Especially in buildings and rooms with large gatherings of people, such as conference halls, hospitals, schools, cinemas, theaters, and wellness centers.
With the help of such sensors, engineers, environmental experts, and healthcare specialists can optimize ventilation to create a comfortable and "healthy" indoor climate.
ATTENTION, the device is currently discontinued.
- Specifications

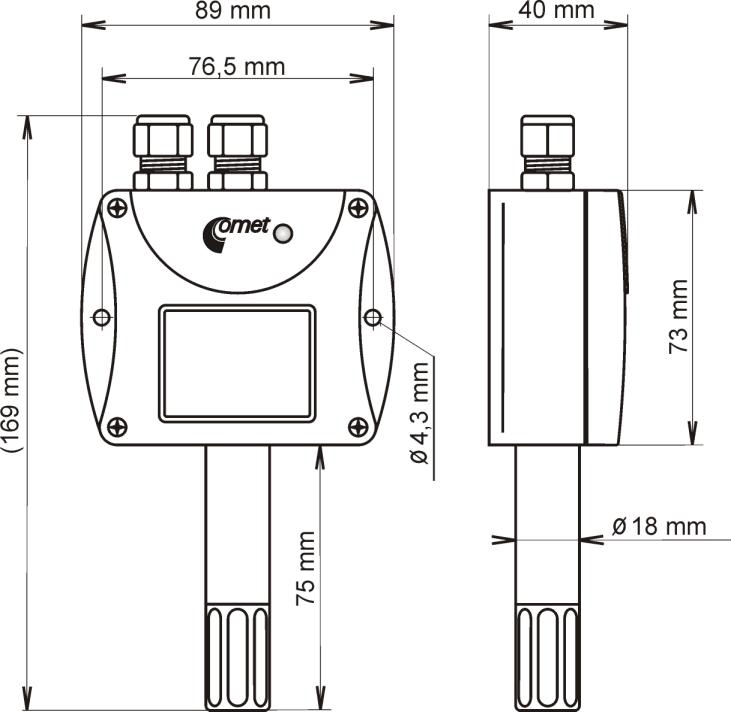

- Overall Drawing

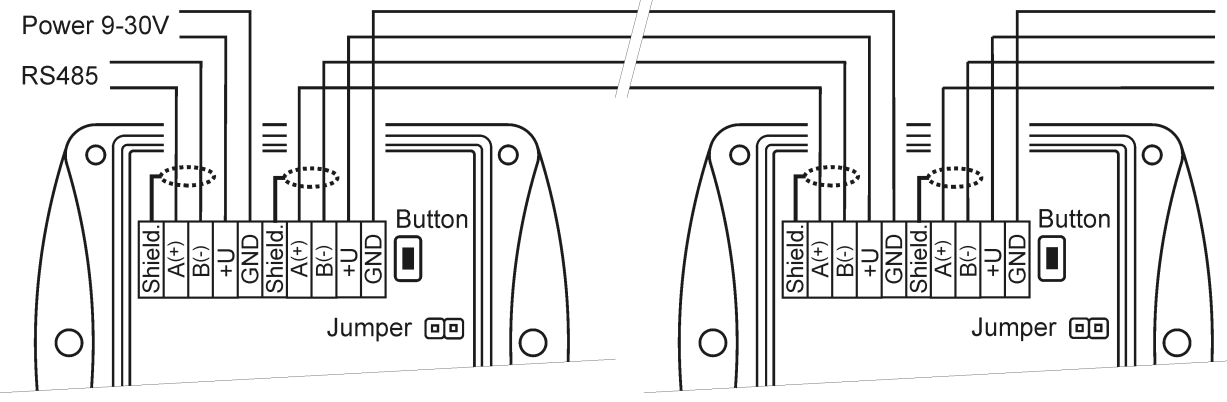

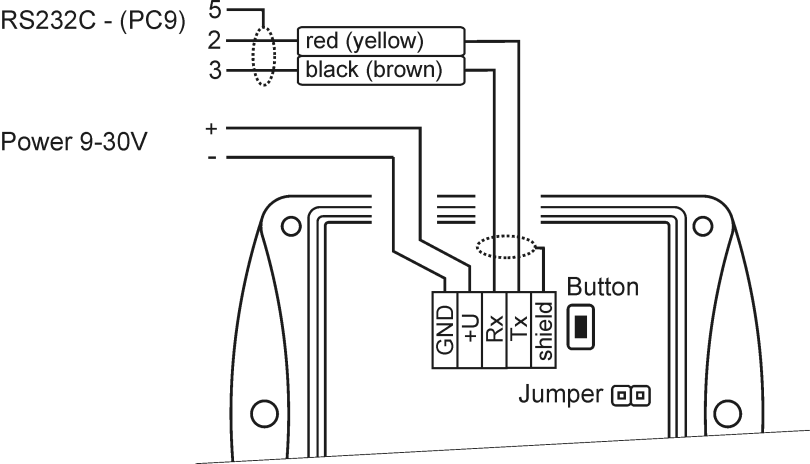

- Electrical diagram
- Applications
|
Sensors |
T6340 |
T6440 |
|
Output |
RS232 |
RS485 |
|
Measured values |
CO2 + Relative Humidity + Temperature |
|
|
Measured temperature range |
from -30 to +60°C |
|
|
Relay output |
No |
|
|
Discrete input |
No |
|
|
LCD display |
Yes |
|
|
PoE |
No |
|
|
CO2 measurement range |
from 0 to 2000ppm (optional 5000 ppm, 10000 ppm) |
|
|
CO2 concentration measurement accuracy |
±(50ppm +2% of measured value) at 25°C and 1013hPa |
|
|
Optional CO2 measurement range |
from 0 to 10000ppm ±(100ppm +5% of measured value) at 25°C and 1013hPa |
|
|
Relative humidity measurement range |
from 0 to 100% |
|
|
Relative humidity measurement accuracy |
±2.5% at relative humidity from 5 to 95% and at 23°C |
|
|
Temperature measurement accuracy |
±0.4°C |
|
|
Available temperature units |
Celsius, Fahrenheit |
|
|
Dew point temperature measurement accuracy and range |
±1.5°C at ambient temp. T<25°C and RH>30% |
|
|
Absolute humidity measurement accuracy and range |
±1.5g/m3 at ambient temp. T < 25°C |
|
|
Specific humidity measurement accuracy and range |
±2g/kg at ambient temp. T < 35°C |
|
|
Mixture component ratio measurement accuracy and range |
±2g/kg at ambient temp. T < 35°C |
|
|
Specific enthalpy measurement accuracy and range |
±3kJ/kg at ambient temp. T < 25°C |
|
|
CO2 measurement interval |
15 sec |
|
|
Operating temperature range |
from -30 to +60°C |
|
|
Sensor housing mesh filtering capability |
0.025mm – stainless steel mesh |
|
|
Protocol |
ModBus RTU and Advantech ADAM compatible protocol |
|
|
Sensor protection class |
IP30 / IP40 |
|
|
Power supply voltage |
9-30 V dc, power consumption approximately 1W |
|
|
Dimensions |
88.5 x 170 x 39.5 mm (W x H x D), rod length 75 mm |
|
|
Weight |
175g |
|
|
Warranty |
3 years |
|
