CO2, Temperature, and Humidity Converter with Color Touch Display — tSENSE
Спецификация tSENSE
Available on request
Delivery across Russia
Order phone: +7(800)777-18-50
Description
tSENSE – is an advanced and versatile "3-in-1" converter designed for installation in rooms equipped with air conditioning systems. The device measures the concentration of CO2, temperature, and humidity in the surrounding air without requiring additional compensation. Measurement data is transmitted to the building management system or a separate controller using standard industrial signals and communication protocols.
tSENSE combines all the elements necessary for effective climate control in office centers, hospitals, hotels, schools, and other institutions. Monitoring CO2 levels in adaptive ventilation systems (DCV) helps create a healthy and comfortable environment while enabling cost savings. The ability to also control temperature and humidity makes the sensor a truly versatile device.
Advantages
- No maintenance required
- 3 sensors in one housing
- Color touchscreen with customizable graphical interface
- Versatility
- Improved housing design
- 5-year warranty
- Technical Data

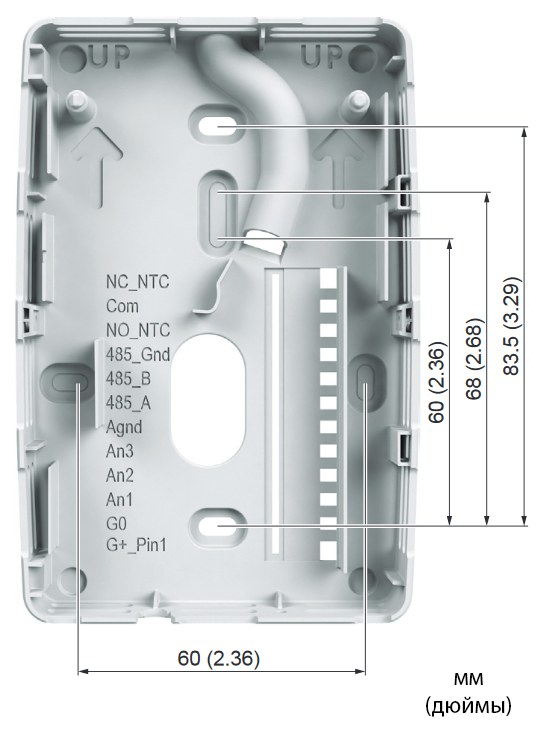

- Overall Drawing

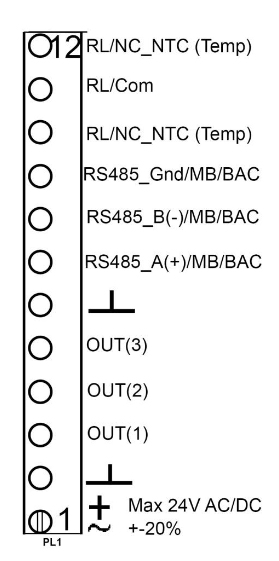

- Connection diagram
- Applications
| Characteristic | Value |
| Measured gas | Carbon dioxide (CO2) |
| Measurement principle | NDIR |
| CO2 measurement range | 0...2000 ppm |
| Temperature measurement range | 0...+50°C |
| Humidity measurement range | 0...100% relative humidity |
| Accuracy (CO2) | ±30ppm ±3% of measured value |
| Dimensions | 125mm x 85mm x 22mm |
| Display dimensions | 49mm x 37mm |
| Service life | >15 years |
| Power supply | 12VDC, 24VAC/DC |
| Interface | Modbus (MB) or BACnet (BAC) protocols via RS485 |
